I often have to describe the logical components of EPiServer CMS to clients and customers. It always feel like I end up recreating a logical architecture diagram on each occasion.

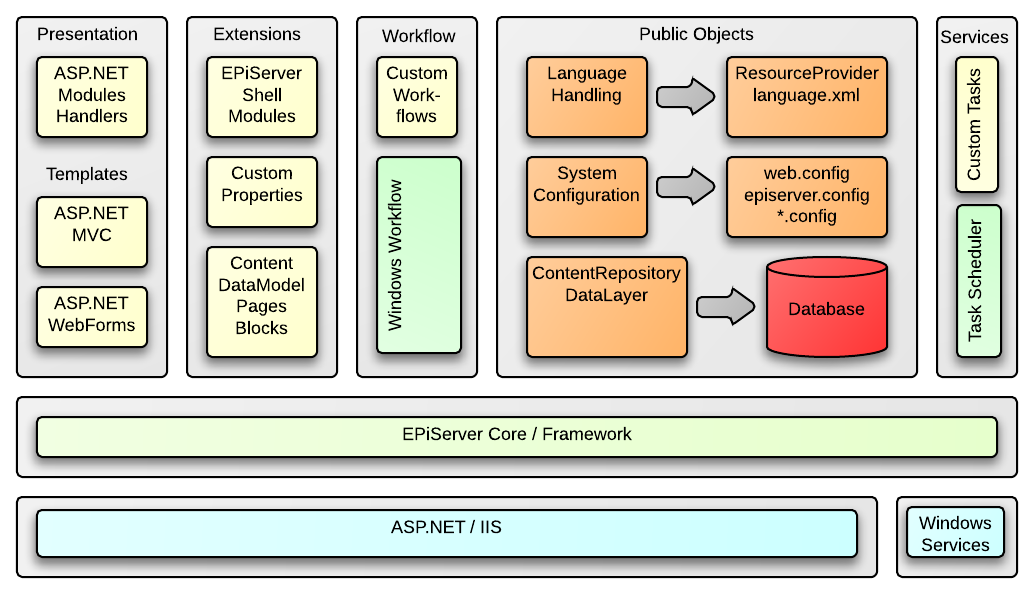

The best place to keep something so that you never lose it, is in a place where it’s easy to find. Anything on the web is easy to find (thanks Google). I’ve decided the best place to keep the following EPiServer CMS7 logical architecture diagram is out in the open.

The added benefit of this for everybody else, is that I’m happy for you to use my work. If any of you are LucidChart users then I’m happy to share the original with you so that you can apply any further modifications.
